What Is WVA 19032? Dimensions, Fitment and Buyer Verification
Summary:
What is WVA 19032? It is a heavy-duty drum brake lining profile commonly used on BPW trailer axles with S-cam brakes. Typical aftermarket listings show 420 mm drum diameter, 180 mm width, and 17 mm or 18 mm thickness, with 10 rivet holes and R205 radius. This buyer-focused technical guide covers dimensions, fitment verification, friction material considerations, common misconceptions, and sourcing confidence for importers and fleets. Learn how to avoid costly mismatches and request a wholesale quote from BAIYUN Brake, an IATF 16949 and ECE R90 certified commercial vehicle brake lining manufacturer.
What Is WVA 19032? Dimensions, Fitment and Buyer Verification
Quick answer: WVA 19032 identifies a heavy-duty drum brake lining shape used on commercial trailer axles, especially BPW applications. Industry listings often quote 420×180×17/18 mm with R205 radius and 10 rivet holes. The number itself is a profile code, not a dimension guarantee, so buyer verification against your axle drawing remains the final step.
Why Do Buyers Search for WVA 19032 Instead of a Part Number?
WVA numbers solve a real procurement problem: one axle platform can carry multiple OEM part numbers, but the friction shape often remains identical. For a BPW trailer axle, WVA 19032 gives importers a standard profile reference that works across suppliers. That matters when you're holding stock for mixed fleets. You don't need to memorize five different OE numbers—you start from the WVA profile and verify dimensions backwards.
Fleet managers and distributors use WVA 19032 because it shortens the sourcing conversation. Instead of emailing a photo of a worn lining, they send the WVA reference, drum diameter, and cam spread. Our export team then checks the profile against controlled drawings and tells you whether our stock matches. If you're building a brake lining program for BPW-heavy fleets, request a quote for commercial vehicle brake linings with the WVA number ready.
What Dimensions Are Commonly Listed for WVA 19032?

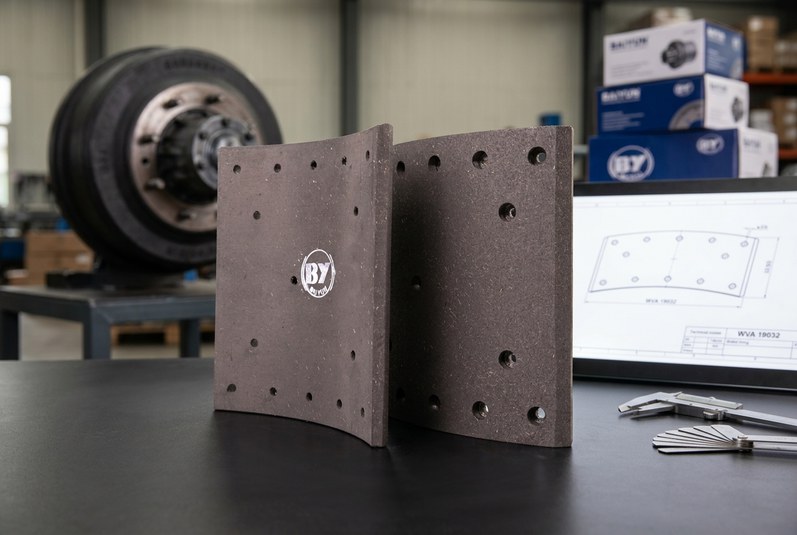

A typical aftermarket listing for WVA 19032 shows a drum diameter of 420 mm and a lining width of 180 mm. That's the most useful pair of numbers for first-pass screening. The table below reflects commonly circulated aftermarket dimensions, not a manufacturer-controlled drawing.
| Specification Item | Commonly Listed Value | What Buyers Should Check |
|---|---|---|
| WVA number | 19032 | Cross-check against axle drawing |
| Drum diameter | 420 mm | Measure actual drum ID, not old lining |
| Lining width | 180 mm | Confirm with supplier catalogue |
| Lining thickness | 17 mm / 18 mm | Thickness affects brake stroke and shoe clearance |
| Radius | R205 mm | Must match drum curvature exactly |
| Rivet holes | 10 pcs | Check pitch, hole diameter and countersink |
| Outer arc length | 222 mm (varies) | Confirm with supplier catalogue |
| Inner arc length | 205 mm (varies) | Confirm with supplier catalogue |
Those 17 mm and 18 mm thickness options are not interchangeable on every axle. Some BPW brake shoe platforms run tighter clearance than others. A 1 mm difference can change adjuster travel and cam geometry. If your fleet operates mixed trailer vintages, don't assume all WVA 19032 linings are the same—verify thickness against the exact shoe number.
How Do You Confirm WVA 19032 Fitment on BPW Trailer Axles?

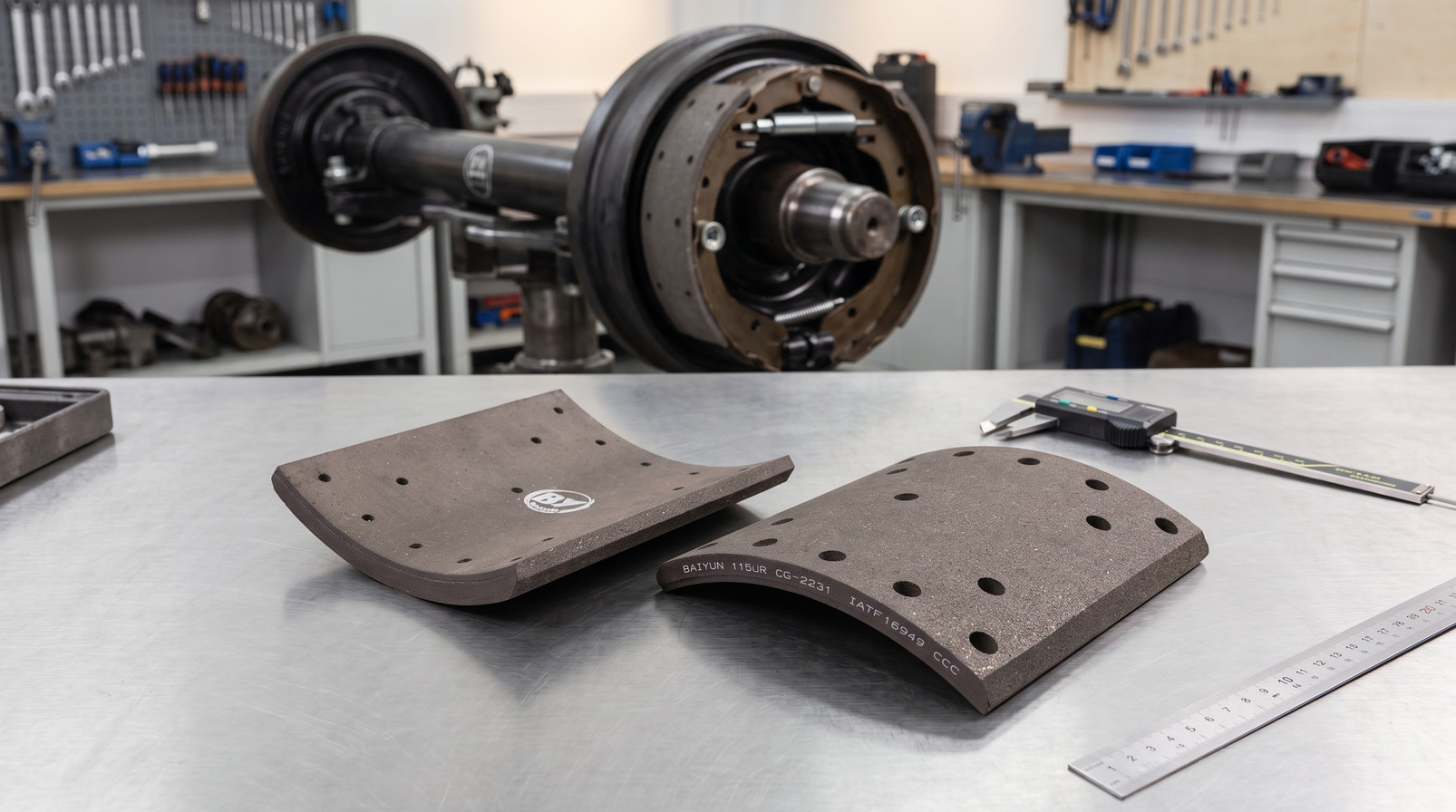

BPW trailer axles use S-cam expanding drum brakes, where two brake shoes press linings into the drum inner surface. WVA 19032 profiles are often listed for these applications because the curvature, width, and rivet pattern align with BPW shoe tables. But WVA fitment is not a plug-and-play guarantee.
Ask for three things from your supplier before you commit. First, request the controlled dimension drawing. Second, confirm the exact BPW axle series or shoe platform. Third, compare the old lining's rivet spacing and arc length against the new sample. If you're also stocking front axle friction, check our wholesale CV brake pads inquiry page for compatible disc brake options. Many BPW trailer fleets run drum linings on trailer axles and disc pads on tractor steer axles—one supplier for both simplifies container planning.
Don't rely on WVA number alone when the fleet runs modified brake geometry or aftermarket drums. A worn drum that has been machined to the maximum service limit still changes the effective radius. In that scenario, installing a standard R205 lining may create uneven contact until bedding-in. A quick brake lining installation guide review can help your service team avoid premature edge loading.
What Should a Buyer Verification Checklist Include for WVA 19032?
Most WVA 19032 sourcing errors come from skipping one or two verification steps—not from fundamental product defects. A structured checklist catches those gaps before the goods leave the supplier.
- Confirm drum diameter exactly: 420 mm is common, but some aftermarket drums are oversized by 0.5–1.0 mm due to machining tolerance.
- Measure lining width and arc length from the old shoe, not from a catalog screenshot.
- Verify rivet hole count and spacing: 10 holes is typical for WVA 19032, but countersink angle can differ between shoe brands.
- Check thickness: 17 mm or 18 mm affects adjuster stroke; confirm with supplier catalogue.
- Request friction material data: low-metallic, ceramic, or asbestos-free formulations behave differently on long descents.
- Confirm ECE R90 approval for road use within your target market.
- Review batch-level dimension reports from the manufacturer. Our certifications page shows what a controlled IATF 16949 audit expects.
If you're bringing in 500 sets per month, add a pre-shipment sample request to the checklist. BAIYUN Brake holds controlled drawings for its commercial vehicle lining range, but we still recommend confirming physical samples on the first order. It costs less than a rejected container.
How Does Friction Material Affect WVA 19032 Sourcing?
WVA 19032 describes geometry, not friction behavior. Two linings with identical dimensions can perform very differently depending on the friction material formulation. Low-metallic linings offer strong initial bite but may produce more drum wear. Ceramic or asbestos-free formulations prioritize stable friction across a wider temperature range. For BPW trailer axles in long-haul duty, consistent friction from 150°C to 350°C matters more than cold torque numbers.
BAIYUN Brake supplies WVA 19032 linings under the same IATF 16949 quality system used for our entire commercial vehicle range. That means each batch gets checked for shear strength, hardness, and hot friction stability—not just dimensions. If your end customers demand evidence, ask for material data sheets before you quote. A distributor who can show those documents wins more fleet bids than one who can't.
What Are the Most Common Misconceptions About WVA 19032?
Misconception: WVA 19032 is a universal dimension standard. Reality: The WVA code is a shape identifier. Different manufacturers can have minor arc length or rivet pattern variations, so a 19032 lining from one plant may not fit all BPW shoes. Confirm with supplier catalogue.
Misconception: 17 mm and 18 mm thickness are interchangeable. Reality: A 1 mm thickness change alters cam stroke, shoe clearance, and adjuster behavior. On a loaded BPW trailer axle, that difference can create uneven brake balance. Always verify thickness against the axle drawing.
Misconception: Any brake lining with 420×180 mm dimensions is equivalent. Reality: Radius, arc length, rivet hole pitch, and friction formulation all affect fit and performance. Buyers who skip those checks often end up with linings that bed unevenly or crack at the rivet line. See brake lining crack troubleshooting for failure patterns.
What Questions Do Importers Ask About WVA 19032?
Q: What does WVA 19032 actually mean?
A: WVA 19032 is a profile code from the WVA numbering system used by friction material suppliers. It generally corresponds to a heavy-duty drum brake lining for BPW trailer axles with a 420 mm drum diameter. The number alone doesn't guarantee dimensions, so buyers should request a controlled drawing before ordering.
Q: What are the typical dimensions of WVA 19032?
A: Common aftermarket listings show 420 mm drum diameter, 180 mm width, 17 mm or 18 mm thickness, 10 rivet holes, and R205 radius. Outer arc length is often listed around 222 mm, with inner arc length near 205 mm. Confirm exact measurements with the supplier catalogue because arc length can vary slightly between manufacturers.
Q: Does WVA 19032 fit all BPW trailer axles?
A: Not automatically. WVA 19032 suits many BPW S-cam trailer brake shoes, but axle series, brake shoe platform, and machined drum diameter influence final fit. Fleets should verify shoe drawing, rivet spacing, and thickness before batch ordering.
Q: Is 17 mm or 18 mm thickness better for WVA 19032?
A: Neither is universally better. The correct thickness depends on your axle clearance and adjuster stroke. Some BPW applications use 17 mm, while others accept 18 mm. Installing the wrong one can cause premature edge wear or brake imbalance, so confirm with the original shoe drawing.
Q: How can I source certified WVA 19032 linings in bulk?
A: Request a supplier that can provide IATF 16949 and ECE R90 documentation, batch test reports, and a pre-shipment sample. BAIYUN Brake supports wholesale container orders with controlled drawings and material data sheets. Contact our export team to confirm the WVA 19032 profile against your axle list.
Ready to verify WVA 19032 against your axle drawing? Request a quote for commercial vehicle brake linings or submit your inquiry to our sales team. We'll confirm dimensions, material options, and ECE R90 certification before you commit to a container.
