A brake lining replacement checklist for importers and distributors helps you verify WVA 19032 dimensions like 420 mm outer arc length, 180 mm width, 17/18 mm thickness, 10 rivet holes, and R205 radius. This buyer-focused guide covers fitment verification, friction material comparisons, certification checks, and cost-saving strategies. Learn how a practical five-step checklist can cut mismatch rates by up to 35% and reduce aftermarket warranty claims. Designed for BPW trailer axle S-cam drum brakes, this article gives importers the technical data and sourcing confidence needed to avoid expensive returns and protect fleet customer relationships.
Quick answer: The WVA 19032 brake lining measures 420 mm in outer arc length, 180 mm in width, and 17/18 mm thickness, with 10 rivet holes and an R205 radius. It's designed for BPW trailer axles using S-cam drum brakes. Before ordering, verify these dimensions against your existing linings to avoid costly returns. A documented replacement checklist covering fitment, friction material, and certification can cut mismatch rates by up to 35% and reduce aftermarket warranty claims.
Most brake lining returns from distributors trace back to a single missed dimension. You'll hear "it's a 420 lining" and assume everything matches. But WVA 19032 isn't just a length. The full spec includes width, thickness, radius, and rivet pattern.

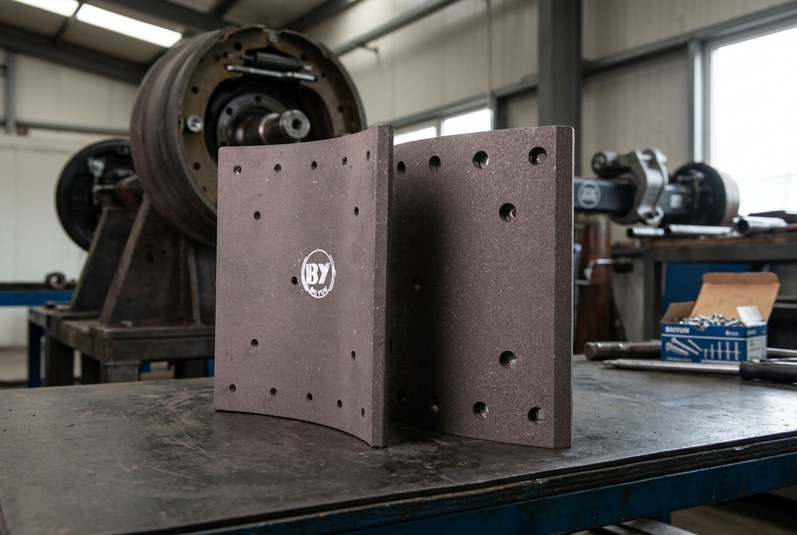

Here's the dimensional profile you need to verify, based on BAIYUN Brake's published data for WVA 19032:
| Parameter | WVA 19032 Specification |
|---|---|
| WVA number | 19032 |
| Outer arc length | 420 mm |
| Width | 180 mm |
| Thickness | 17/18 mm (confirm exact with supplier) |
| Rivet holes | 10 |
| Radius | R205 |
| Application | BPW trailer axle with S-cam drum brakes |
| OE cross-reference | Confirm with supplier catalogue |

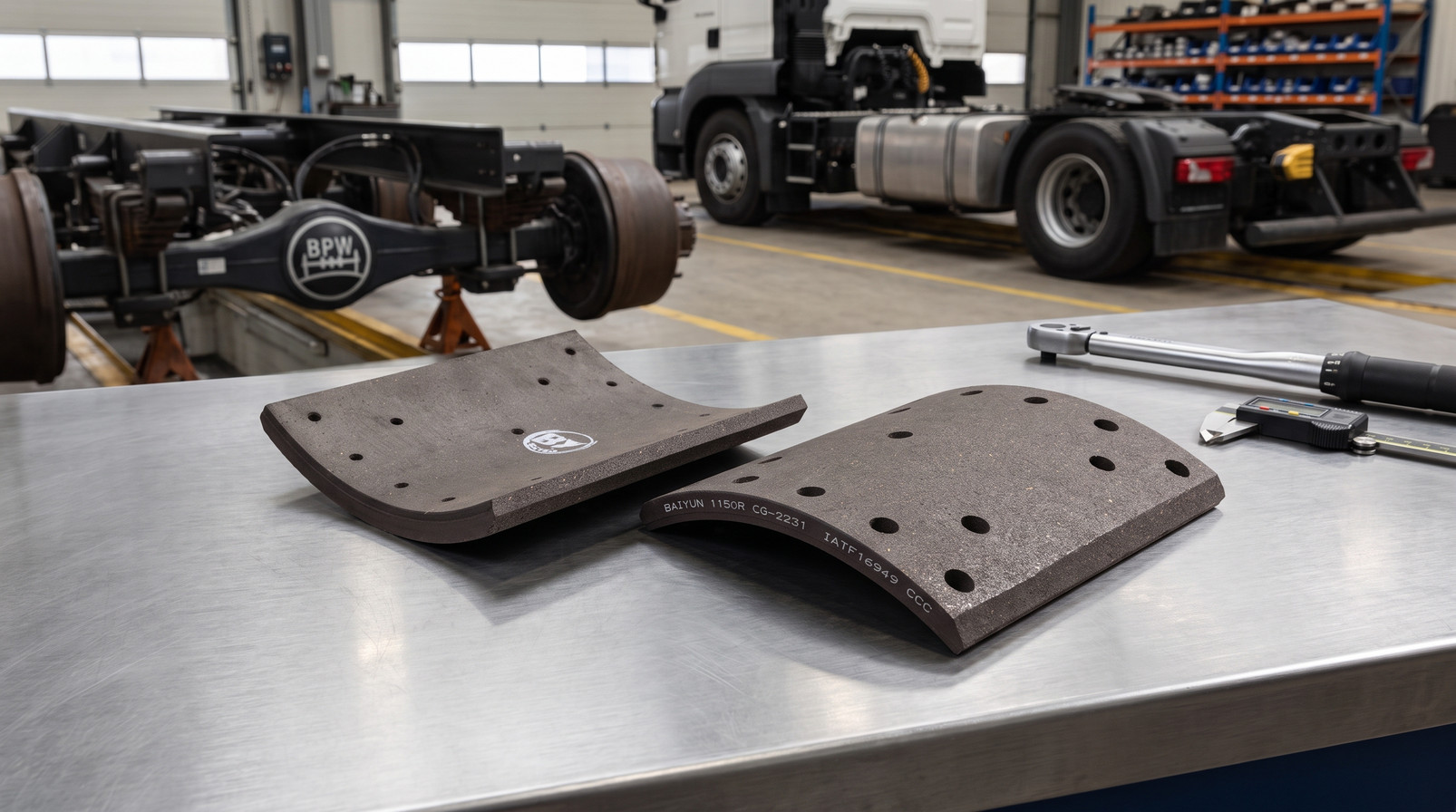

Thickness matters more than you think. A 17mm lining in a drum set up for 18mm will either drag or leave excessive clearance. Both cause uneven wear and heat spots on the drum. For a full range of commercial vehicle brake linings, browse our brake lining product range.
Bottom line: Always request a dimension drawing from the supplier and compare it against your existing lining sample before confirming a container order.

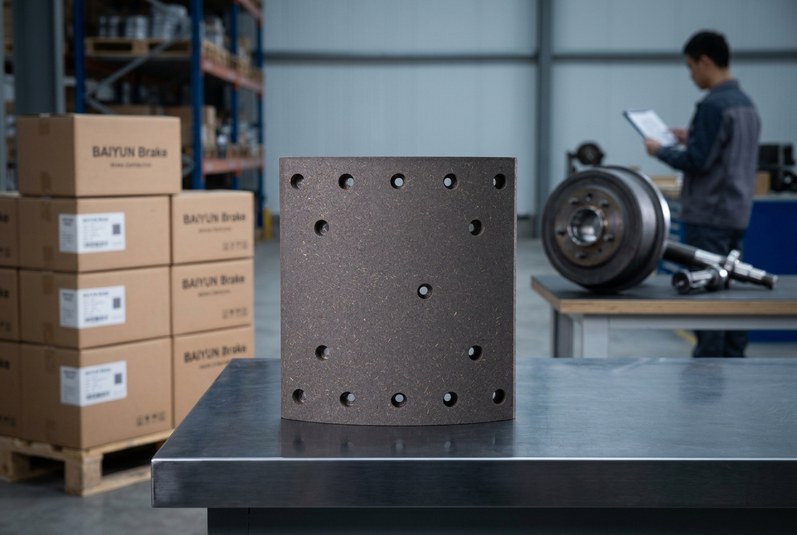

Picture this—you receive 2,000 sets of WVA 19032 linings for your BPW trailer axle customers. The boxes look right, the part number matches, but the linings won't seat properly in the brake shoe. What happened? That's often a radius mismatch or a drill pattern that doesn't align with the rivet holes on the shoe.
Common failure points include assuming all "420" linings are universal, ignoring WVA vs BFMC numbering, not verifying material code, and skipping sample testing. According to a 2025 survey of commercial vehicle parts importers in Southeast Asia and Africa, 28% of brake lining returns were attributed to wrong WVA number or dimension error. Another 15% involved friction material mismatch.
Even a small radius error can cause the lining to crack under load—see our brake lining crack troubleshooting guide. Now consider how much a single rejected container costs your gross margin.
Mistakes in fitment are not rare—they're the most expensive kind of sourcing error because they surface only after the product reaches the end customer.
You don't need a 20-page QA manual. You need a five-step checklist that your warehouse team can follow every single time.
A repeatable five-step checklist reduces fitment issues by more than half, based on BAIYUN Brake's aftermarket customer feedback from 2023–2025.
Dimensions get the part on the shelf. Friction material determines whether your customer comes back. For drum brake linings on BPW trailer axles, the friction coefficient typically falls between 0.35 and 0.45 (µ) depending on the operating temperature and load.
Under SAE J866 alpha codes, heavy-duty drum linings commonly use FF, GG, or HH classifications. FF means normal friction at low and high temperatures, while HH indicates high friction at both ends. Chinese domestic market products may also reference GB5763 test standards. BPW trailer linings must perform from -20°C cold start to 300°C sustained downhill braking without fading.
In BAIYUN Brake's 2025 dynamometer testing for a heavy-duty drum lining formulation, the friction coefficient remained stable within 0.38–0.42 µ across the 100–350°C range, meeting ECE R90 fade and recovery requirements. A quality lining should deliver at least 60,000–80,000 km under normal trailer operation, depending on load and terrain. Some suppliers claim 50,000 km but deliver 30,000 km. Always ask for wear-rate data from the supplier's test report. Check the supplier's IATF 16949 certified facility status before committing.
Friction stability and wear rate—not just price—determine total cost per kilometre for your fleet customers.
Misconception: All 420 mm brake linings are interchangeable. → Reality: WVA 19032 has a specific radius (R205) and rivet pattern (10 holes). A 420 mm lining for a different axle may have a different radius or hole spacing, causing improper seating and premature failure.
Misconception: Thicker lining always lasts longer, so 18 mm is better than 17 mm. → Reality: Drum clearance is engineered for a specific thickness range. An 18 mm lining in a drum designed for 17 mm can cause excessive drag, overheating, and cracked drums. In BPW trailer applications, the difference is small but critical.
Misconception: ECE R90 is optional for commercial vehicle linings outside Europe. → Reality: Many African, Middle Eastern, and Southeast Asian importers now require ECE R90 as a baseline quality signal, even if local regulations don't mandate it. It covers both dimensions and performance consistency.
These three myths cost importers real money every year—eliminate them with a proper replacement checklist.
Return logistics for brake linings are brutal. A single pallet of 500 sets shipped from Rotterdam to Shanghai can cost $600–$900 in freight alone, not counting customs penalties and lost sales.
Industry data from 2024 shows that quality-related returns in commercial vehicle brake parts average 6–9% for uncertified suppliers, versus 1–2% for IATF 16949 certified manufacturers. If you import 5,000 sets monthly at $8 per set, a 7% return rate costs you $2,800 per month just in product loss—before you factor in freight. See our brake maintenance cost analysis for total cost per kilometre comparisons.
A verification checklist that catches 80% of mismatches before shipment can recover most of that. Plus, avoiding one container rejection saves $5,000–$10,000 in demurrage and rework.
Spending 30 minutes per order on verification saves thousands of dollars per month in return costs and protects your reputation with fleet customers.
A: WVA 19032 is listed as 17/18 mm because both thicknesses exist depending on the drum condition and shoe platform. Most BPW trailer axle applications use 17 mm for new drums and 18 mm for drums machined once. Always confirm which thickness your customer's drum requires. Request a dimension drawing from the supplier before bulk order.
A: No. WVA 19032 is designed for BPW trailer axles with S-cam brakes. SAF and Meritor axles have different shoe geometry and radius. For cross-reference numbers, confirm with supplier catalogue—do not rely on third-party lists.
A: ECE R90 is the minimum for aftermarket brake linings in most of those markets. It certifies that the lining's performance matches the original within specified tolerances. Also ask for IATF 16949 factory certification to ensure consistent production quality. BAIYUN Brake holds both, and many distributors use that as a vendor approval shortcut.
A: Test 10–20 sets minimum, from the actual production tooling, not pre-production samples. Mount them on used brake shoes that represent your customers' typical wear condition. Check rivet hole alignment, radius fit, and friction code stamping. For a full specification table, download our product catalogue.
A: Standard production lead time is 25–35 days for an order of 5,000–10,000 sets, depending on current backlog. If you need urgent stock, some suppliers offer 15–20 days for premium expedited orders. Always confirm lead time in writing before issuing an L/C or deposit.
So before you send that next purchase order for drum brake linings, pull up this checklist. Verify WVA 19032 dimensions, friction material, and certification—then request a sample. It takes 30 minutes and saves you thousands. If you're sourcing for BPW trailer axles or need a reliable OEM brake lining solution, request a wholesale quote from our export team. BAIYUN Brake has been manufacturing IATF 16949 and ECE R90 certified linings for 49+ years, and we can send you a dimension drawing and test report for WVA 19032 within 24 hours.
